Electric Charges And Fields

                         Electric charges and fields

                                                          Problems

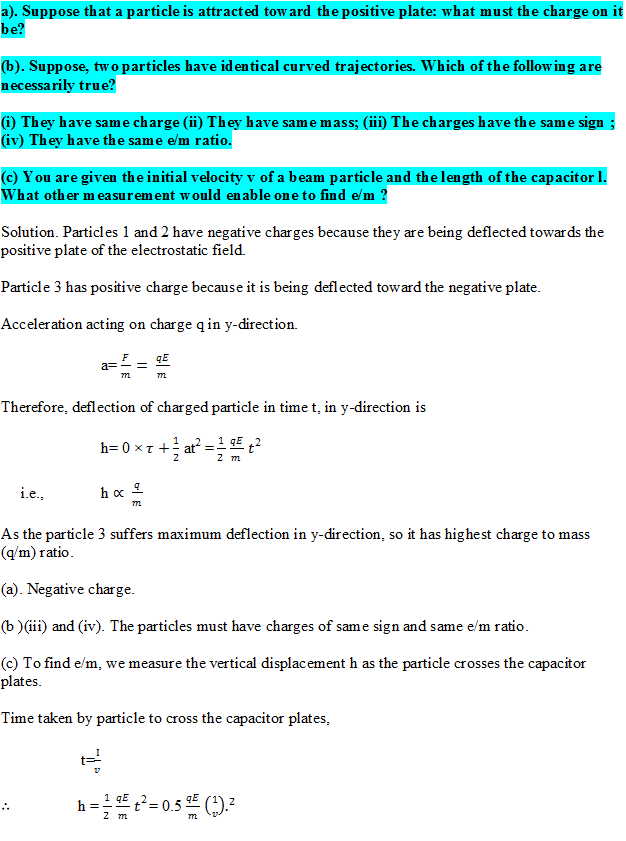

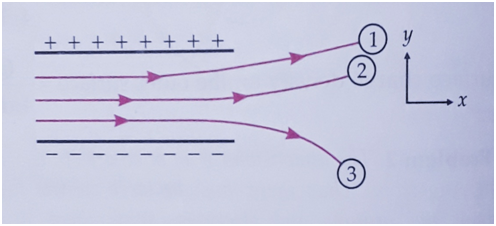

Solution. The electric field lines,
